SJ700D-750HFUF3-1
SJ700D-750HFUF3-1
Obsolete Product
READ ALL REVIEWS
(
0
)

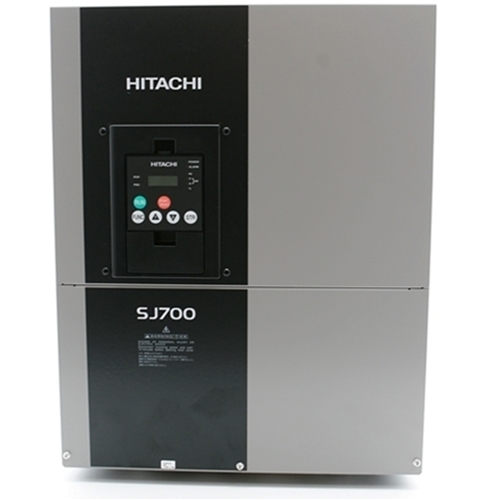

SJ700D-750HFUF3-1: Variable Torque Hitachi 125 HP, 90 kW, VFD
Brochure (SJ700D-1)
Reference Guide (SJ700D-1)
Operating Manual (SJ700D-1)
Qty:
Add to Basket
In your cart
Add to Basket
Notify me when in stock
There are currently no product reviews.
Add Your Review
Service Guarantee
Warranty Claim/Return Policy
All products at driveswarehouse come with 12 months manufacturer’s warranty against defects in material or workmanship.
Money Back Gurantee Policy
We have a 30-day money-back guarantee policy.
Shipping
Our preferred carrier for Shipping is UPS. Free Shipping on orders over $350.00
Processing of Orders
We process faxed or mailed orders on the same business day that they are received.
Description
Customer reviews
Description
Model
PSV7D-1001-1
Series
SJ700D-1
Horsepower
125.000
Rating kW
90.00
Capacity kVA
133.00
Input Voltage
380 - 480 +/- 10%
Input Phase
Three
Input Current
176.0
Output Voltage
400 - 480 +/- 10% (3P)
Output Current
160.0000
Package Height
37
Package Width
26
Package Depth
22
Package Weight
150.0

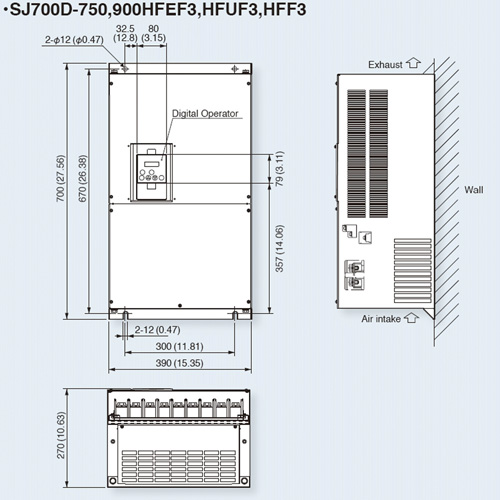

Product Height
27.6000
Product Width
15.4000
Product Depth
10.6000
Summary
SJ700D-750HFUF3-1: Variable Torque Hitachi 125 HP, 90 kW, VFD
Description
125 HP, 160 Amp, 90 kW, SJ700D-750HFUF3-1, Variable Torque AC Drive, Input: 400 - 480VAC, Three Phase
Category
Drives
SubCategory
AC Drives
SubSubCategory
Variable Torque VFD
Enclosure
NEMA 1 (IP20)
Control Method
Sine-Wave (PWM) control
Input Frequency Range
50 - 60
Output Frequency Range
0.1 - 400 Hz
VF Characteristics
V/F free setting (30-400 Hz of base frequency) constant torque and reduced torque of V/F control. Sensorless vector control
Overload Current Rating
150% 60 Seconds 200% 0.5 Seconds
Accel Decel Time
0.1 - 3600 sec. (linear/curve accel./decel. selection) Two stage accel./decel.
Starting Torque
200% at 0.5 Hz (Sensorless vector control) 150% at around 0 Hz (Sersorless vector control with a motor one size frame down)
DC Braking
Performs at start; under set frequency at deceleration or via an external input (braking force time and operating frequency)
Freq Setting Operator Panel
Up(1) and Down(2) keys/value setting keys.
Freq Setting External Signal
"0 ~ 10 VDC, -10V to +10V(input impedence 10k ohms), 4 ~ 20 mA (input impedence 100k ohms)"
Freq Setting External Port
Set by RS485
FWD REV START STOP Operator
Run key/Stop key (FW/RV can be set by command)
FWD REV START STOP External Signal
FW RUN/STOP (NO contact) RV set by terminal assignment (NO/NC selection) 3-wire input possible
FWD REV START STOP External Port
Set by RS485
Intelligent Input Terminals
"Selection of 8 functions from: RV(Reverse), CF-ICF-4(Multispeed command), JG(Jogging), DB(ExternaI DC braking)"
Manufacturer
Hitachi
