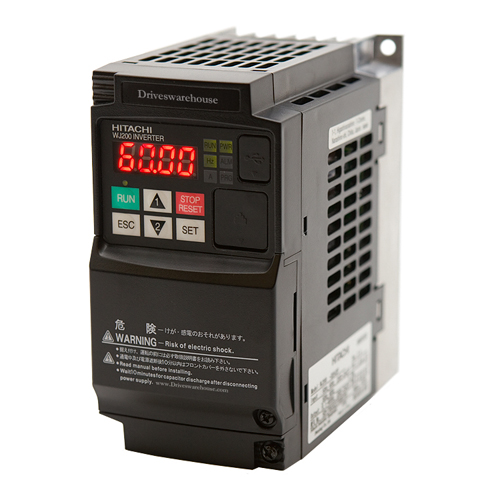

WJ200-004MF
WJ200-004MF
Description:
1/2 HP, 3.5 Amp, 0.4kW, WJ200-004MF, Constant Torque, Sensorless Vector, AC Drive, Input 100-120VAC, Single Phase Input VFD
Reference Guide (WJ200M)
Operating Manual (WJ200M)
$
205.00
Qty:
Add to Cart
In your cart
Add to Cart
Notify me when in stock
Description
Customer Reviews
Description
Model
PWV2-052
Part No
PWV2-052
Series
WJ200M
Horsepower
0.500
Rating kW
0.40
Capacity kVA
1.20
Input Voltage
100 - 120 +/- 10%
Input Phase
Single
Input Current
14.0
Output Voltage
200 - 240 +/- 10% (3P)
Output Current
3.5000
Package Height
13
Package Width
11
Package Depth
7
Package Weight
7.0

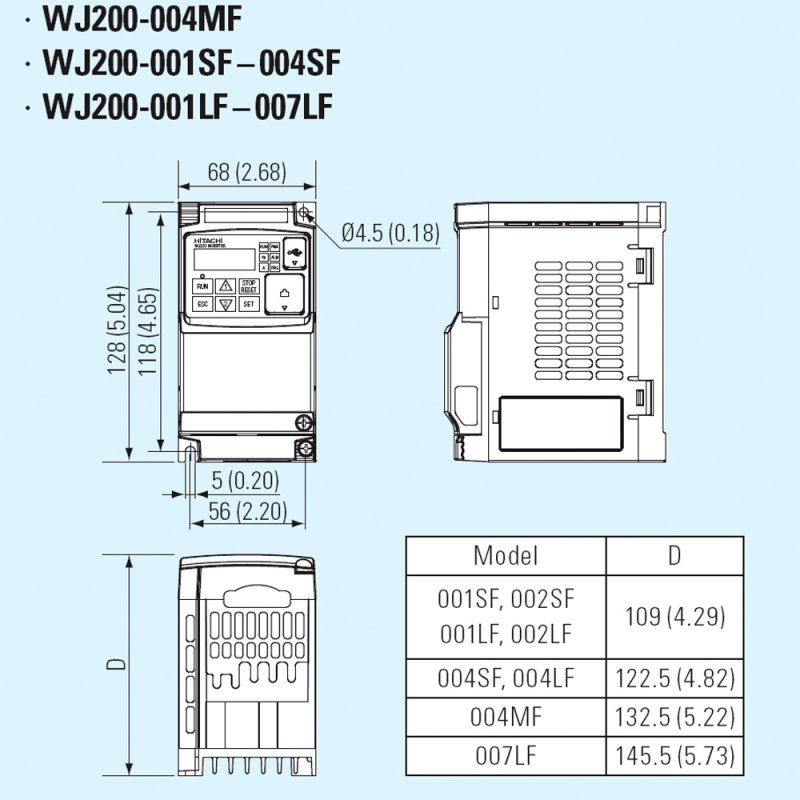

Product Height
5.0000
Product Width
2.7000
Product Depth
5.2000
Description
1/2 HP, 3.5 Amp, 0.4kW, WJ200-004MF, Constant Torque, Sensorless Vector, AC Drive, Input 100-120VAC, Single Phase Input VFD
Category
Drives
SubCategory
AC Drives
SubSubCategory
Sensorless Vector VFD
Enclosure
NEMA 1 (IP20)
Control Method
Line-to-line sine wave Pulse Width Modulation (PWM) Control
Input Frequency Range
50 - 60
Output Frequency Range
0.1 - 400 Hz
VF Characteristics
V/F variable V/F control (constant torque reduced torque) Sensorless vector control
Overload Current Rating
150% 60 seconds
Accel Decel Time
0.1 - 6000 sec. (linear/curve accel./decel.) Two stage accel./decel. setting available
Starting Torque
200% or more
DC Braking
Operating frequency time and braking force variable.
Freq Setting Operator Panel
Up(1) and Down(2) keys/value setting keys.
Freq Setting Potentiometer
Analog Setting
Freq Setting External Signal
"0 ~ 10 VDC (input impedence 10k ohms), 4 ~ 20 mA (input impedence 250k ohms), Potentiometer: 1k to 2k ohms variable resistor, The frequency command is the maximum frequency at 9.8V for input voltage 0 - 10 VDC or at 19.6 mA for input current 4 ~ 20 mA. If this characteristic is not convenient contact Drives Warehouse."
FWD REV START STOP Operator
Run/Stop (Forward/Reverse run change by command)
FWD REV START STOP External Signal
Forward RUN/STOP Reverse RUN/STOP

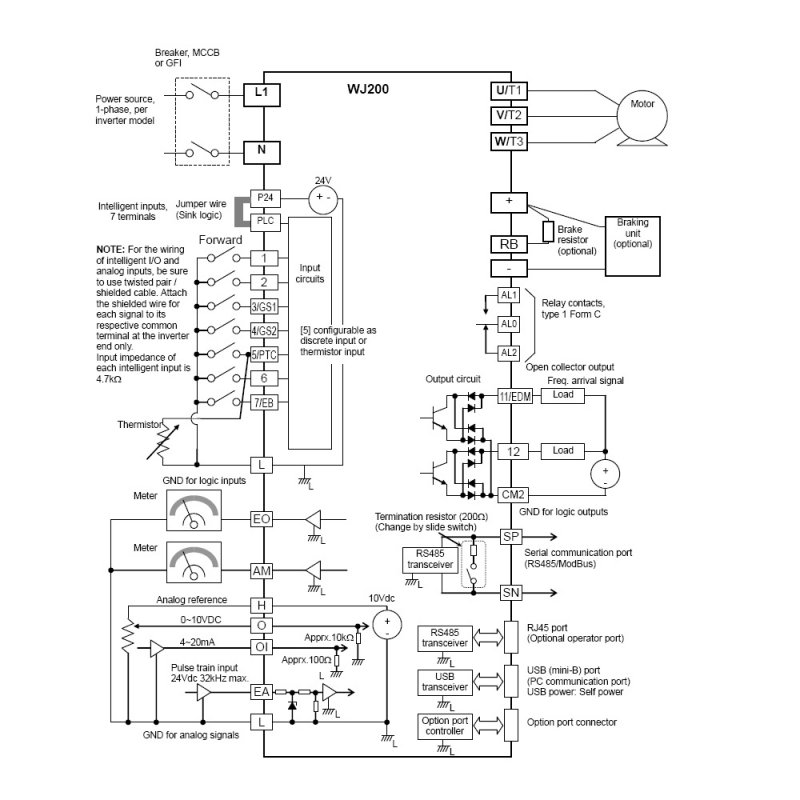

Intelligent Input Terminals
"FW (Forward run command), RV (reverse run command, CF1~CF4 (multi-stage speed setting), JG (jogging command), 2CH (2-stage acceleration/deceleration command), FRS (free run stop command), EXT (external trip), USP (USP function), SFT (soft lock)"
Manufacturer
Hitachi
