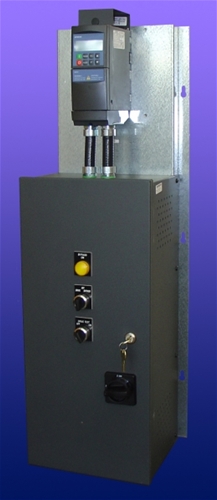

• Model
  • PBP2-401R
  • Part No
  • PBP2-401R
  • Series
  • VBA3R
  • Horsepower
  • 40.000
  • Rating kW
  • 30.00
  • Input Voltage
  • 380 - 480 +/- 10%
  • Input Phase
  • Three
  • Output Voltage
  • 380 - 480 +/- 10%
  • Package Weight
  • 160.0
  • Product Height
  • 57.0000
  • Product Width
  • 46.0000
  • Product Depth
  • 12.5000
  • Summary
  • VBA340.320X
  • Description
  • Input: 380 ~ 480VAC
    Horsepower: 40
    Rated Amps: 52
    Enclosure: NEMA3R
  • Category
  • Panel
  • SubCategory
  • VFD with ByPass
  • SubSubCategory
  • ByPass - Outdoor
  • Enclosure
  • NEMA 3R
  • Manufacturer
  • SIEMENS - USA
  • Drive Manufacturer
  • SIEMENS - USA
  • Setup Preprogrammed
  • Yes
  • Test Run
  • Yes
  • Keypad for Adapting Protocol
  • Yes
  • UL Listed 100kA Short Circuit Rating
  • Yes
  • AC Line Reactor
  • Yes
  • Drive Service Switch
  • Yes
  • Enhanced Keypad
  • Yes
  • HAND AUTO Selection
  • Yes
  • Motor Overload Contactor
  • Yes
  • Transformer 115VAC
  • Yes
  • Fused Disconnect
  • Yes
  • RS485 System Resistor Termination
  • Yes
  • Purge Speed Selection
  • Yes
  • ByPass ON Light
  • Yes
  • Two Contactor Design Power ByPass
  • Yes
  • Easy Connection and Selection of BAS Systems
  • Yes
  • Safety Run Enable Override Jumpers Installed
  • Yes
  • DC Choke
  • Yes
  • LC Filters
  • Yes
  • Drive Software
  • Yes
  • FieldBus Option
  • Yes
