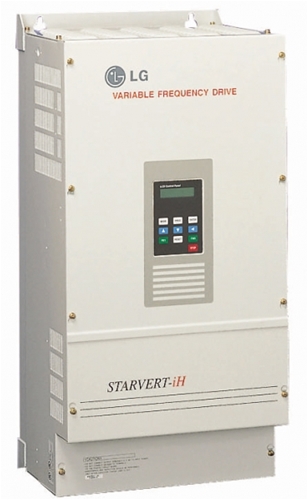

SV110iH-4CT

SV110iH-4CT is OBSOLETE Latest Model: Replacement Product: P1-02520-HFUF

Description:

SV110iH-4CT
$9,372.00
  • Model
  • SV110iH-4
  • Series
  • LG-SV
  • Horsepower
  • 150.000
  • Rating kW
  • 110.00
  • Capacity kVA
  • 200.00
  • Input Voltage
  • 380 - 480 +/- 10%
  • Input Phase
  • Three
  • Output Voltage
  • 400 - 480 +/- 10% (3P)
  • Output Current
  • 264.0000

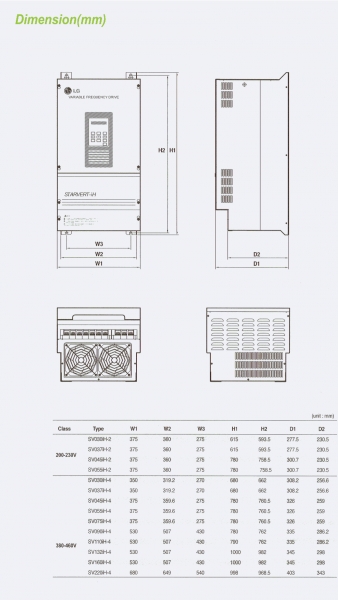

  • Product Height
  • 31.1000
  • Product Width
  • 20.9000
  • Product Depth
  • 13.2000
  • Summary
  • SV110iH-4CT
  • Description
  • SV110iH-4CT
  • Category
  • Drives
  • SubCategory
  • AC Drives
  • SubSubCategory
  • Flux Vector Drive
  • Enclosure
  • NEMA 1 (IP20)
  • Control Method
  • Space Vector PWM control
  • Input Frequency Range
  • 50 - 60
  • Output Frequency Range
  • 0.5 - 400 Hz
  • VF Characteristics
  • **DUAL RATING** V/F optionally variable constant torque and reduced torque of V/F control.
  • Overload Current Rating
  • 110% 60 Seconds 150% 0.5 Seconds
  • Accel Decel Time
  • 0.1 - 6000 sec. (linear/curve accel./decel.) Two stage accel./decel. setting available
  • Starting Torque
  • 0~150% adjustable
  • DC Braking
  • Performs at start; under set frequency at deceleration or via an external input (braking force time and operating frequency)
  • Freq Setting Operator Panel
  • Up(1) and Down(2) keys/value setting keys.
  • Freq Setting Potentiometer
  • Manual
  • Freq Setting External Signal
  • "0 ~ 10 VDC, -10V to +10V(input impedence 10k ohms), 4 ~ 20 mA (input impedence 100k ohms)"
  • Freq Setting External Port
  • Set by RS485
  • FWD REV START STOP Operator
  • Run key/Stop key (FW/RV can be set by command)
  • FWD REV START STOP External Signal
  • FW RUN/STOP (NO contact) RV set by terminal assignment (NO/NC selection) 3-wire input possible
  • FWD REV START STOP External Port
  • Set by RS485

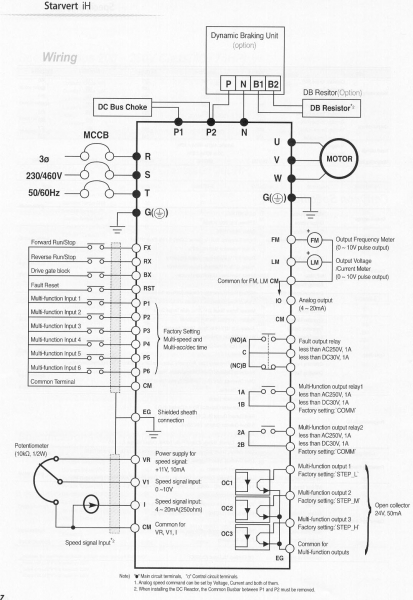

  • Intelligent Input Terminals
  • 6 Programmable Inputs
  • Thermister Input
  • One terminal
  • Intelligent Output Terminals
  • "5 Programmable Outputs: 2 Form A contact (N.O). Fault Contact Output (A
  • Intelligent Output Functions
  • C
  • Monitoring Display
  • B) - 250VAC 1A
  • Other Functions
  • 30VDC 1A
  • Manufacturer
  • Polyspede-L
