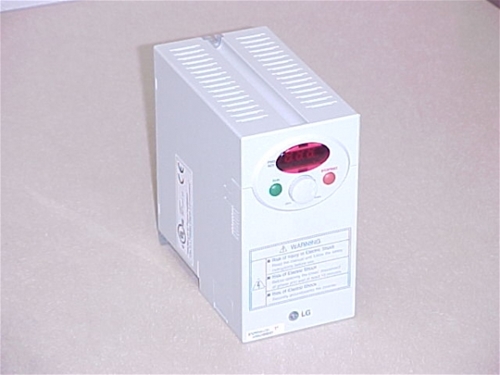

SV015iC5-1

• Series
• LG-SV

• Horsepower
• 2.000

• Rating kW
• 1.50

• Capacity kVA
• 3.00

• Input Voltage
• 200 - 240 +/- 10% (1P)

• Input Phase
• Single

• Output Voltage
• 200 - 240 +/- 10% (3P)

• Output Current
• 8.0000

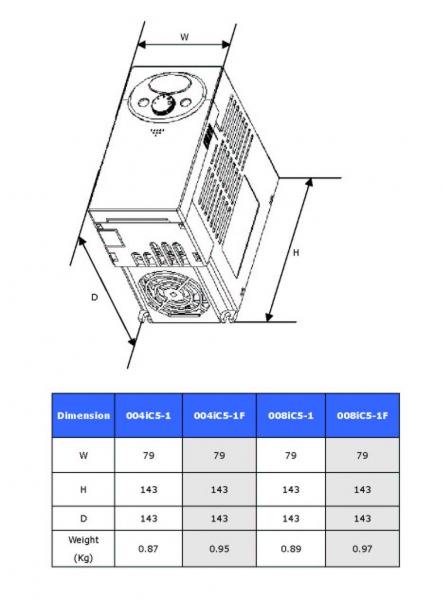

• Product Height
• 5.6000

• Product Width
• 6.1000

• Product Depth
• 5.6000

• Summary
• SV015iC5-1

• Description
• SV015iC5-1

• Category
• Drives

• SubCategory
• AC Drives

• SubSubCategory
• Flux Vector Drive

• Enclosure
• NEMA 1 (IP20)

• Control Method
• Space Vector PWM control

• Input Frequency Range
• 50 - 60

• Output Frequency Range
• 0.5 - 400 Hz

• VF Characteristics
• **DUAL RATING** V/F optionally variable constant torque and reduced torque of V/F control.

• Overload Current Rating
• 110% 60 Seconds 150% 0.5 Seconds

• Accel Decel Time
• 0.1 - 6000 sec. (linear/curve accel./decel.) Two stage accel./decel. setting available

• Starting Torque
• 0~150% adjustable

• DC Braking
• Performs at start; under set frequency at deceleration or via an external input (braking force time and operating frequency)

• Freq Setting Operator Panel
• Up(1) and Down(2) keys/value setting keys.

• Freq Setting Potentiometer
• Manual

• Freq Setting External Signal
• "0 ~ 10 VDC, -10V to +10V(input impedence 10k ohms), 4 ~ 20 mA (input impedence 100k ohms)"

• Freq Setting External Port
• Set by RS485

• FWD REV START STOP Operator
• Run key/Stop key (FW/RV can be set by command)

• FWD REV START STOP External Signal
• FW RUN/STOP (NO contact) RV set by terminal assignment (NO/NC selection) 3-wire input possible

• FWD REV START STOP External Port
• Set by RS485

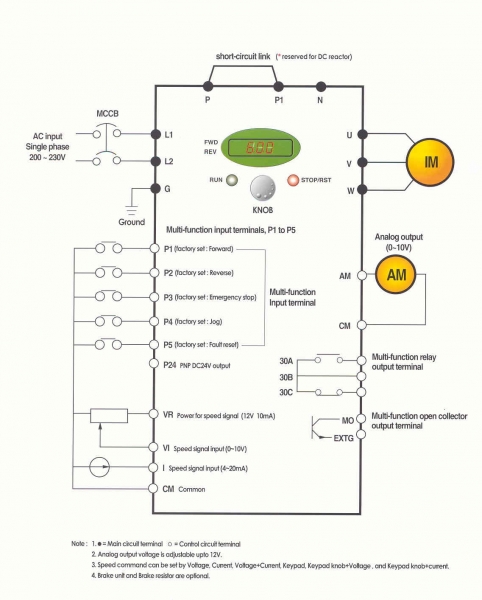

• Intelligent Input Terminals
• 6 Programmable Inputs

• Thermister Input
• One terminal

• Intelligent Output Terminals
• "5 Programmable Outputs: 2 Form A contact (N.O). Fault Contact Output (A

• Intelligent Output Functions
• C

• Monitoring Display
• B) - 250VAC 1A

• Other Functions
• 30VDC 1A
