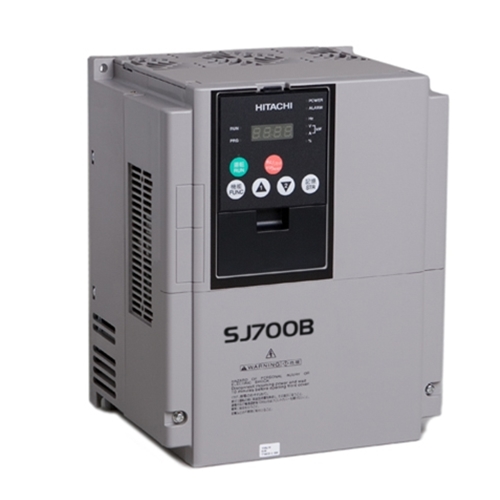

SJ700B-110LFUF

SJ700B-110LFUF is OBSOLETE Latest Model: Replacement Product: SJ700D-75LFUF3-1
SJ700B-110LFUF
SJ700B-110LFUF 1
SJ700B-110LFUF

Description:

SJ700B-110LFUF
$778.00
Description
Customer Reviews
  • Model
  • PSV7B-150
  • Part No
  • PSV7B-150
  • Series
  • SJ700B
  • Horsepower
  • 15.000
  • Rating kW
  • 11.00
  • Capacity kVA
  • 18.20
  • Input Voltage
  • 200 - 240 +/- 10% (3P)
  • Input Phase
  • Three
  • Input Current
  • 48.0
  • Output Voltage
  • 200 - 240 +/- 10% (3P)
  • Output Current
  • 44.0000
  • Package Weight
  • 17.0

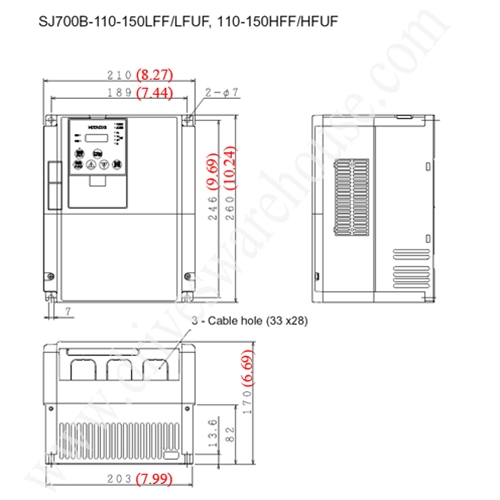

  • Product Height
  • 10.2000
  • Product Width
  • 8.2000
  • Product Depth
  • 7.0000
  • Summary
  • SJ700B-110LFUF
  • Description
  • SJ700B-110LFUF
  • Category
  • Drives
  • SubCategory
  • AC Drives
  • SubSubCategory
  • Sensorless Vector VFD
  • Enclosure
  • NEMA 1 (IP20)
  • Control Method
  • Line to line sine-wave?pulse width modulation?(PWM) control
  • Input Frequency Range
  • 50 - 60
  • Output Frequency Range
  • 0.1 - 400 Hz
  • VF Characteristics
  • V/F characteristic variable with the base frequency set between 30 to 400 Hz constant or reduced torque V/F control Sensorless vector control.
  • Overload Current Rating
  • 120% 30 Seconds 150% 0.5 Seconds
  • Accel Decel Time
  • 0.1 - 6000 sec. (linear/curve accel./decel.) Two stage accel./decel. setting available
  • DC Braking
  • Performs at start; under set frequency at deceleration or via an external input (braking force time and operating frequency)
  • Freq Setting Operator Panel
  • Up(1) and Down(2) keys/value setting keys.
  • Freq Setting Potentiometer
  • Set by potentiometer
  • Freq Setting External Signal
  • "DC 0 ~ 10 VDC
  • Freq Setting External Port
  • -10V to +10V (input impedence 10k ohms)
  • FWD REV START STOP Operator
  • 4 ~ 20 mA (input impedence 100 ohms)"
  • FWD REV START STOP External Signal
  • Set by RS485
  • FWD REV START STOP External Port
  • Run key/Stop key (FW/RV can be set by command)
  • Intelligent Input Terminals
  • FW RUN/STOP (NO contact) RV set by terminal assignment (NO/NC selection) 3-wire input possible
  • Intelligent Input Functions
  • Set by RS485
  • Thermister Input
  • "8 terminals, Selection of 69 functions from: RV (Reverse), CFI~CF4 (Multispeed command), JG (Jogging), DB (External DC braking), SET (Second motor constants setting)"
