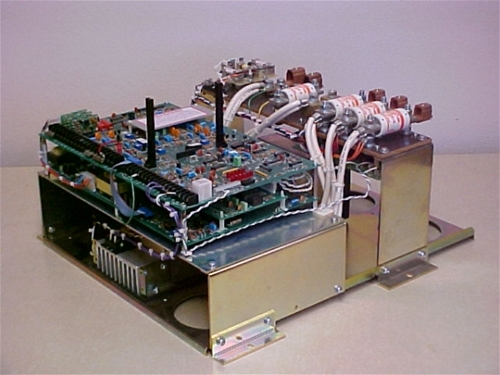

PRD12U-600G

PRD12U-600G is OBSOLETE Latest Model: Replacement Product: D4Q1-1250-1

Description:

PRD12U-600G
$5,090.00
  • Model
  • PRD12U-600G
  • Part No
  • PRD12U-600G
  • Series
  • PRD12U
  • Horsepower
  • 60.000
  • Rating kW
  • 45.00
  • Input Voltage
  • 200 - 240 +/- 10% (3P)
  • Input Phase
  • Three
  • Input Current
  • 175.0
  • Output Voltage
  • Arm: 240VDC, Fld: 150VDC
  • Output Current
  • 204.0000
  • Package Weight
  • 43.0

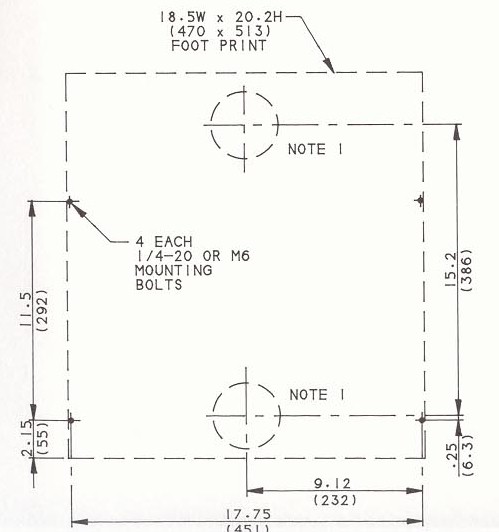

  • Product Height
  • 24.2000
  • Product Width
  • 20.8000
  • Product Depth
  • 11.5000
  • Summary
  • PRD12U-600G
  • Description
  • PRD12U-600G
  • Category
  • Drives
  • SubCategory
  • DC Drives
  • SubSubCategory
  • "Non-Regen.(A), 3 Phase"
  • Enclosure
  • OPEN
  • Control Method
  • "Full Wave, Six SCR"
  • Input Frequency Range
  • 50 - 60 Hz
  • Options
  • Reversing
  • Manufacturer
  • Polyspede
  • Instantaneous Overcurrent Trip
  • Preset for 260% of rated current
  • Acceleration Deceleration
  • 0.6 ~ 28 sec.
  • Minimum Speed
  • 0 ~ 10% of output voltage
  • Maximum Speed
  • 75 ~ 105% of output voltage
  • IR Compensation
  • 0 ~ 10% boost
  • Armature Feedback
  • 0.01
  • Tachometer Feedback
  • 0.001
  • Speed Command Input
  • 4 ~ 20 mA or 0 ~ 6 VDC
  • Tachometer Feedback Input
  • 50VDC per 1000 RPM standard
