ODP-2-34100-3HF4Y-TN
ODP-2-34100-3HF4Y-TN
Obsolete Product
READ ALL REVIEWS
(
0
)

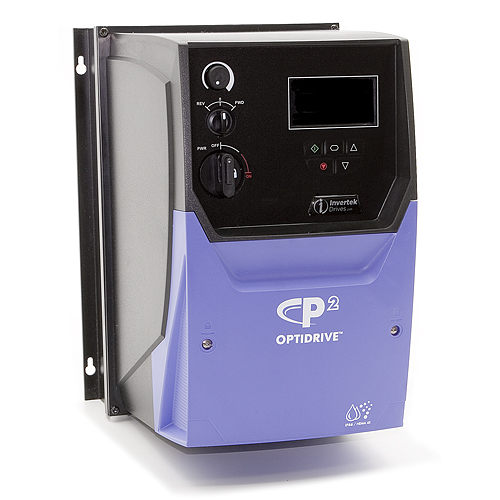

ODP-2-34100-3HF4Y-TN: Switched NEMA 4X, Constant Torque, 10 HP,
Brochure (ODP2-66)
Operating Manual (ODP2-66)
Qty:
Add to Basket
In your cart
Add to Basket
Notify me when in stock
There are currently no product reviews.
Add Your Review
Service Guarantee
Warranty Claim/Return Policy
All products at driveswarehouse come with 12 months manufacturer’s warranty against defects in material or workmanship.
Money Back Gurantee Policy
We have a 30-day money-back guarantee policy.
Shipping
Our preferred carrier for Shipping is UPS. Free Shipping on orders over $350.00
Processing of Orders
We process faxed or mailed orders on the same business day that they are received.
Description
Customer reviews
Description
Model
ODP-2-34100-3HF4Y-TN
Part No
ODP-2-34100-3HF4Y-TN
Series
ODP2-66
Horsepower
10.000
Rating kW
7.50
Capacity kVA
14.96
Input Voltage
380 - 480 +/- 10%
Input Phase
Three
Input Current
21.8
Output Voltage
400 - 480 +/- 10% (3P)
Output Current
18.0000
Package Height
21
Package Width
15
Package Depth
15
Package Weight
33.0
Product Height
12.2100
Product Width
8.3100
Product Depth
10.4700
Summary
ODP-2-34100-3HF4Y-TN: Switched NEMA 4X, Constant Torque, 10 HP,
Description
10 HP, 18 Amp, 7.5 kW, ODP-2-34100-3HF4Y-TN, Constant Torque, Switched NEMA 4X, VFD, Input: 400 - 480VAC, Three Phase
Category
Drives
SubCategory
AC Drives
SubSubCategory
Vector Drive
Enclosure
NEMA 4X (IP66)
Control Method
Sine-Wave (PWM) control
Input Frequency Range
50 - 60
Output Frequency Range
0.1 - 400 Hz
VF Characteristics
V/F free setting (30-400 Hz of base frequency) constant torque and reduced torque of V/F control. Sensorless vector control
Overload Current Rating
150% 60 Seconds 200% 0.5 Seconds
Accel Decel Time
0.1 - 3600 sec. (linear/curve accel./decel. selection) Two stage accel./decel.
Starting Torque
200% at 0.5 Hz (Sensorless vector control) 150% at around 0 Hz (Sersorless vector control with a motor one size frame down)
DC Braking
Performs at start; under set frequency at deceleration or via an external input (braking force time and operating frequency)
Freq Setting Operator Panel
Up(1) and Down(2) keys/value setting keys.
Freq Setting External Signal
"0 ~ 10 VDC, -10V to +10V(input impedence 10k ohms), 4 ~ 20 mA (input impedence 100k ohms)"
Freq Setting External Port
Set by RS485
FWD REV START STOP Operator
Run key/Stop key (FW/RV can be set by command)
FWD REV START STOP External Signal
FW RUN/STOP (NO contact) RV set by terminal assignment (NO/NC selection) 3-wire input possible
FWD REV START STOP External Port
Set by RS485

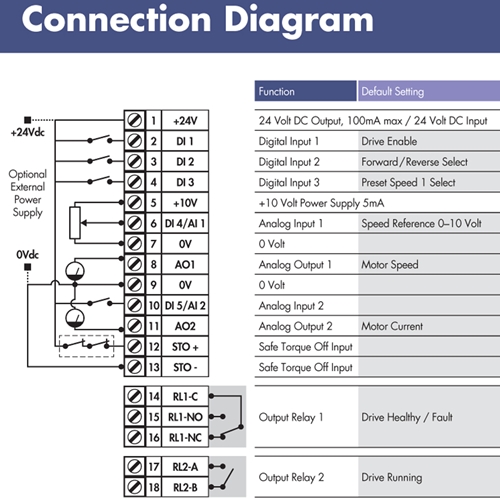

Intelligent Input Terminals
"Selection of 8 functions from: RV(Reverse), CF-ICF-4(Multispeed command), JG(Jogging), DB(ExternaI DC braking)"
Manufacturer
Invertek
