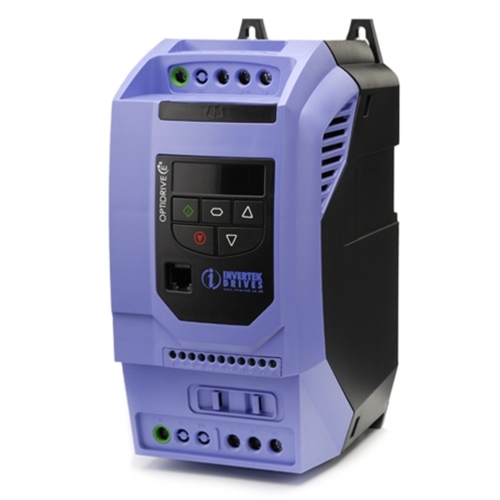

ODE-2-32050-1H042
ODE-2-32050-1H042
ODE-2-32050-1H042 is OBSOLETE
Latest Model:
Replacement Product:
ODE-3-320153-1042
Description:
ODE-2-32050-1H042
$
520.00
Qty:
Add to Cart
In your cart
Add to Cart
Notify me when in stock
Description
Customer Reviews
Description
Model
ODE-2-32050-1H042
Part No
ODE-2-32050-1H042
Series
ODE2-20
Horsepower
5.000
Rating kW
3.70
Capacity kVA
5.10
Input Voltage
200 - 240 +/- 10% (1P)
Input Phase
Single
Input Current
30.5
Output Voltage
200 - 240 +/- 10% (3P)
Output Current
15.0000
Package Height
11
Package Width
13
Package Depth
11
Package Weight
10.0
Product Height
10.7800
Product Width
5.1600
Product Depth
6.8900
Summary
ODE-2-32050-1H042
Description
ODE-2-32050-1H042
Category
Drives
SubCategory
AC Drives
SubSubCategory
Flux Vector Drive
Enclosure
NEMA 1 (IP20)
Control Method
Sine-Wave (PWM) control
Input Frequency Range
50 - 60
Output Frequency Range
0.1 - 400 Hz
VF Characteristics
V/F free setting (30-400 Hz of base frequency) constant torque and reduced torque of V/F control. Sensorless vector control
Overload Current Rating
150% 60 Seconds 200% 0.5 Seconds
Accel Decel Time
0.1 - 3600 sec. (linear/curve accel./decel. selection) Two stage accel./decel.
Starting Torque
200% at 0.5 Hz (Sensorless vector control) 150% at around 0 Hz (Sersorless vector control with a motor one size frame down)
DC Braking
Performs at start; under set frequency at deceleration or via an external input (braking force time and operating frequency)
Freq Setting Operator Panel
Up(1) and Down(2) keys/value setting keys.
Freq Setting External Signal
"0 ~ 10 VDC, -10V to +10V(input impedence 10k ohms), 4 ~ 20 mA (input impedence 100k ohms)"
Freq Setting External Port
Set by RS485
FWD REV START STOP Operator
Run key/Stop key (FW/RV can be set by command)
FWD REV START STOP External Signal
FW RUN/STOP (NO contact) RV set by terminal assignment (NO/NC selection) 3-wire input possible
FWD REV START STOP External Port
Set by RS485
Intelligent Input Terminals
"Selection of 8 functions from: RV(Reverse), CF-ICF-4(Multispeed command), JG(Jogging), DB(ExternaI DC braking)"
