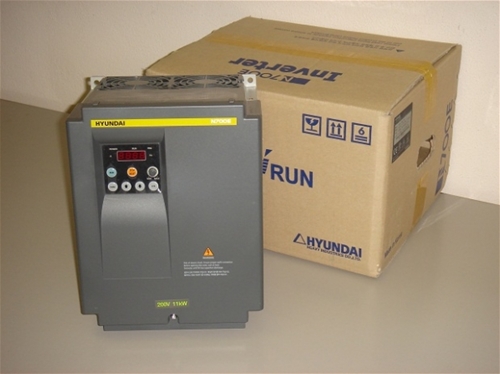

N700E-075HF
N700E-075HF
N700E-075HF is OBSOLETE
Latest Model:
Replacement Product:
WJ200-075HF
Description:
N700E-075HF
$
544.00
Qty:
Add to Cart
In your cart
Add to Cart
Notify me when in stock
Description
Customer Reviews
Description
Model
N700E-075HF
Part No
N700E-075HF
Series
HY-N700E
Horsepower
10.000
Rating kW
7.50
Capacity kVA
12.20
Input Voltage
380 - 480 +/- 10%
Input Phase
Three
Output Voltage
400 - 480 +/- 10% (3P)
Output Current
16.0000
Package Weight
9.3

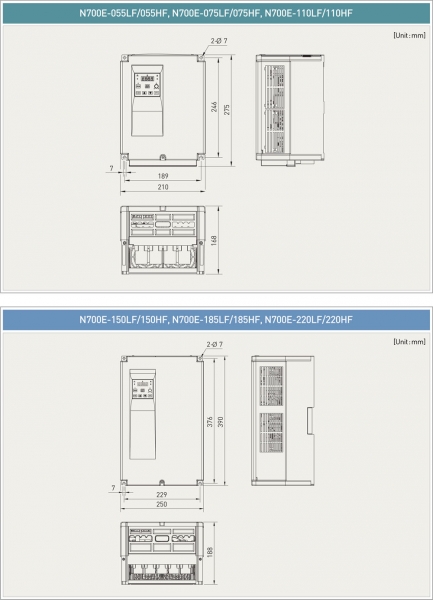

Product Height
10.8000
Product Width
8.3000
Product Depth
6.6000
Summary
N700E-075HF
Description
N700E-075HF
Category
Drives
SubCategory
AC Drives
SubSubCategory
Sensorless Vector VFD
Enclosure
NEMA 1 (IP20)
Control Method
Line-to-line sine wave Pulse Width Modulation (PWM) Control
Input Frequency Range
50 - 60
Output Frequency Range
0.1 - 400 Hz
VF Characteristics
V/F variable V/F control (constant torque reduced torque) Sensorless vector control
Overload Current Rating
150% 60 seconds
Accel Decel Time
0.1 - 6000 sec. (linear/curve accel./decel.) Two stage accel./decel. setting available
Starting Torque
More than 200% @ 0.5Hz
DC Braking
Operating frequency time and braking force variable.
Freq Setting Operator Panel
Up(1) and Down(2) keys/value setting keys.
Freq Setting Potentiometer
Analog Setting
Freq Setting External Signal
"0 ~ 10 VDC (input impedence 10k ohms), 4 ~ 20 mA (input impedence 250k ohms), Potentiometer: 1k to 2k ohms variable resistor, The frequency command is the maximum frequency at 9.8V for input voltage 0 - 10 VDC or at 19.6 mA for input current 4 ~ 20 mA. If this characteristic is not convenient contact Drives Warehouse."
FWD REV START STOP Operator
Run/Stop (Forward/Reverse run change by command)
FWD REV START STOP External Signal
Forward RUN/STOP Reverse RUN/STOP

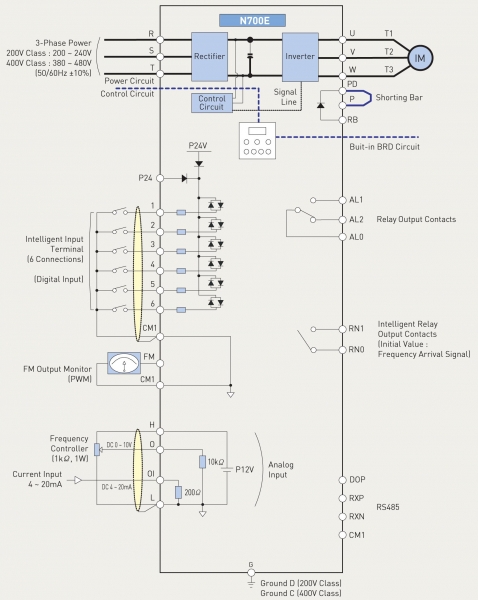

Intelligent Input Terminals
"FW (Forward run command), RV (reverse run command, CF1~CF4 (multi-stage speed setting), JG (jogging command), 2CH (2-stage acceleration/deceleration command), FRS (free run stop command), EXT (external trip), USP (USP function), SFT (soft lock)"
Manufacturer
Polyspede-L
