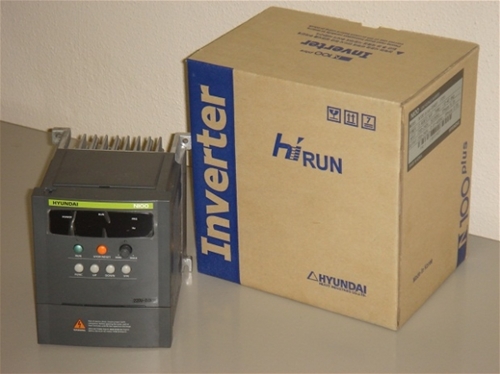

N100-004LF
N100-004LF
N100-004LF is OBSOLETE
Latest Model:
Replacement Product:
WJ200-004LF
Description:
N100-004LF
$
128.00
Qty:
Add to Cart
In your cart
Add to Cart
Notify me when in stock
Description
Customer Reviews
Description
Model
N100-004LF
Part No
N100-004LF
Series
HY-N100
Horsepower
0.500
Rating kW
0.40
Capacity kVA
1.20
Input Voltage
200 - 240 +/- 10% (3P)
Input Phase
Three
Output Voltage
200 - 240 +/- 10% (3P)
Output Current
3.0000
Package Weight
2.6

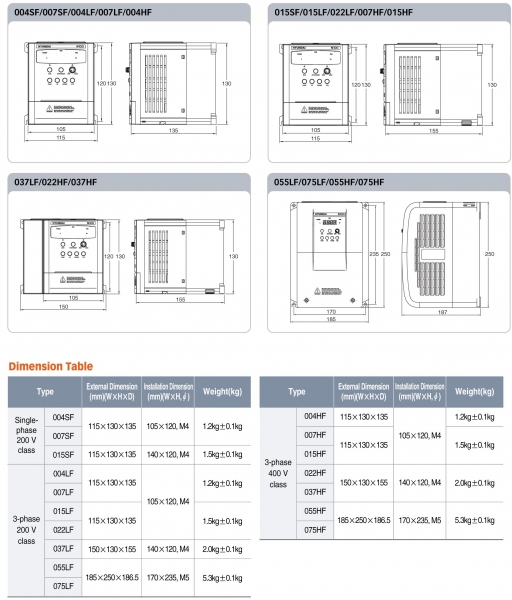

Product Height
5.1000
Product Width
4.5000
Product Depth
5.3000
Summary
N100-004LF
Description
N100-004LF
Category
Drives
SubCategory
AC Drives
SubSubCategory
Sensorless Vector VFD
Enclosure
NEMA 1 (IP20)
Control Method
Line-to-line sine wave Pulse Width Modulation (PWM) Control
Input Frequency Range
50 - 60
Output Frequency Range
0.1 - 400 Hz
VF Characteristics
V/F variable V/F control (constant torque reduced torque) Sensorless vector control
Overload Current Rating
150% 60 seconds
Accel Decel Time
0.1 - 6000 sec. (linear/curve accel./decel.) Two stage accel./decel. setting available
Starting Torque
More than 200% @ 0.5Hz
DC Braking
Operating frequency time and braking force variable.
Freq Setting Operator Panel
Up(1) and Down(2) keys/value setting keys.
Freq Setting Potentiometer
Analog Setting
Freq Setting External Signal
"0 ~ 10 VDC (input impedence 10k ohms), 4 ~ 20 mA (input impedence 250k ohms), Potentiometer: 1k to 2k ohms variable resistor, The frequency command is the maximum frequency at 9.8V for input voltage 0 - 10 VDC or at 19.6 mA for input current 4 ~ 20 mA. If this characteristic is not convenient contact Drives Warehouse."
FWD REV START STOP Operator
Run/Stop (Forward/Reverse run change by command)
FWD REV START STOP External Signal
Forward RUN/STOP Reverse RUN/STOP

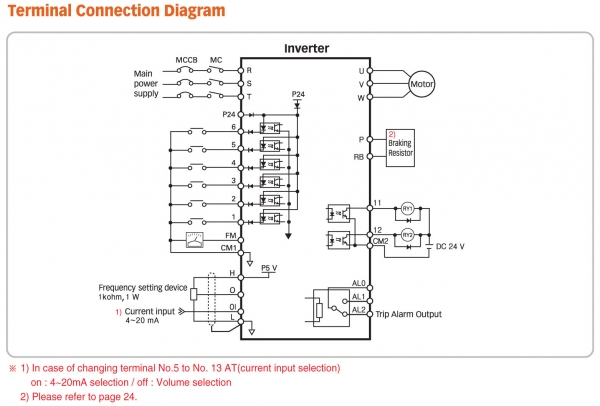

Intelligent Input Terminals
"FW (Forward run command), RV (reverse run command, CF1~CF4 (multi-stage speed setting), JG (jogging command), 2CH (2-stage acceleration/deceleration command), FRS (free run stop command), EXT (external trip), USP (USP function), SFT (soft lock)"
