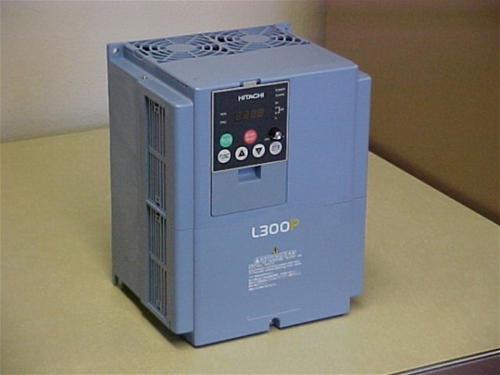

L300P-300LFU2

L300P-300LFU2 is OBSOLETE Latest Model: Replacement Product: SJ700D-220LFUF3-1

Description:

L300P-300LFU2
$1,776.00
  • Model
  • XLT6-400
  • Series
  • L300
  • Horsepower
  • 40.000
  • Rating kW
  • 30.00
  • Capacity kVA
  • 46.90
  • Input Voltage
  • 200 - 240 +/- 10% (3P)
  • Input Phase
  • Three
  • Input Current
  • 124.0
  • Output Voltage
  • 200 - 240 +/- 10% (3P)
  • Output Current
  • 113.0000
  • Package Weight
  • 26.4
  • Product Height
  • 5.1000
  • Product Width
  • 4.3000
  • Product Depth
  • 6.4000
  • Summary
  • L300P-300LFU2
  • Description
  • L300P-300LFU2
  • Category
  • Drives
  • SubCategory
  • AC Drives
  • SubSubCategory
  • Variable Torque VFD
  • Enclosure
  • NEMA 1 (IP20)
  • Control Method
  • Line to line sine-wave?pulse width modulation?(PWM) control
  • Input Frequency Range
  • 50 - 60
  • Output Frequency Range
  • 0.1 - 400 Hz
  • VF Characteristics
  • V/F optionally variable constant torque and reduced torque of V/F control.
  • Overload Current Rating
  • 120% 30 Seconds 150% 0.5 Seconds
  • Accel Decel Time
  • 0.1 - 6000 sec. (linear/curve accel./decel.) Two stage accel./decel. setting available
  • DC Braking
  • Performs at start; under set frequency at deceleration or via an external input (braking force time and operating frequency)
  • Freq Setting Operator Panel
  • Up(1) and Down(2) keys/value setting keys.
  • Freq Setting Potentiometer
  • Set by potentiometer
  • Freq Setting External Signal
  • "0 ~ 10 VDC, -10V to +10V(input impedence 10k ohms), 4 ~ 20 mA (input impedence 100k ohms)"
  • Freq Setting External Port
  • Set by RS485
  • FWD REV START STOP Operator
  • Run key/Stop key (FW/RV can be set by command)
  • FWD REV START STOP External Signal
  • FW RUN/STOP (NO contact) RV set by terminal assignment (NO/NC selection) 3-wire input possible
  • FWD REV START STOP External Port
  • Set by RS485
  • Intelligent Input Terminals
  • "Selection of 5 functions from: RV (Reverse), CFI~CF4 (Multispeed command), JG (Jogging), DB (External DC braking), SET (Second motor constants setting), 2CH (Second accel./decel.), FRS (Free-run stop)"
  • Manufacturer
  • Hitachi
