• Model
  • BHP-101
  • Part No
  • BHP-101
  • Series
  • BHP
  • Horsepower
  • 10.000
  • Rating kW
  • 7.50
  • Input Voltage
  • 380 - 480 +/- 10%
  • Input Phase
  • Three
  • Input Current
  • 17.0
  • Output Voltage
  • Arm: 500VDC, Fld: 300VDC
  • Output Current
  • 18.0000
  • Package Height
  • 21
  • Package Width
  • 21
  • Package Depth
  • 13
  • Package Weight
  • 40.0

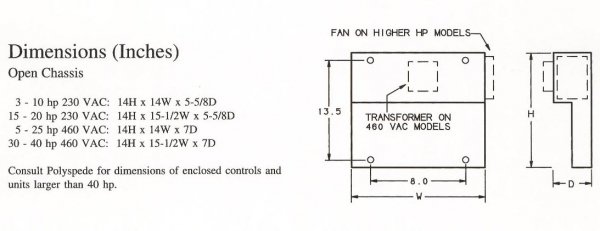

  • Product Height
  • 14.0000
  • Product Width
  • 14.0000
  • Product Depth
  • 7.0000
  • Summary

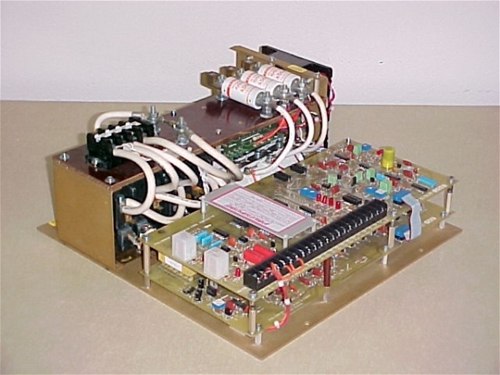

  • BHP-101: Non Regenerative 10 HP, 18 Amps, Analog 460V DC Drive
  • Description
  • 10 HP, 460 VAC, 18 Amps, BHP-101, Analog Non Regenerative, Variable Speed DC Drive
  • Category
  • Drives
  • SubCategory
  • DC Drives
  • SubSubCategory
  • "Non-Regen.(A), 3 Phase"
  • Enclosure
  • OPEN
  • Control Method
  • "Full Wave, Six SCR"
  • Input Frequency Range
  • 50 - 60 Hz
  • Options
  • Reversing
  • Manufacturer
  • Polyspede
  • Instantaneous Overcurrent Trip
  • Preset for 260% of rated current
  • Acceleration Deceleration
  • 0.6 ~ 28 sec.
  • Minimum Speed
  • 0 ~ 10% of output voltage
  • Maximum Speed
  • 75 ~ 105% of output voltage
  • IR Compensation
  • 0 ~ 10% boost
  • Armature Feedback
  • 0.01
  • Tachometer Feedback
  • 0.001
  • Speed Command Input
  • 4 ~ 20 mA or 0 ~ 6 VDC
  • Tachometer Feedback Input
  • 50VDC per 1000 RPM standard
